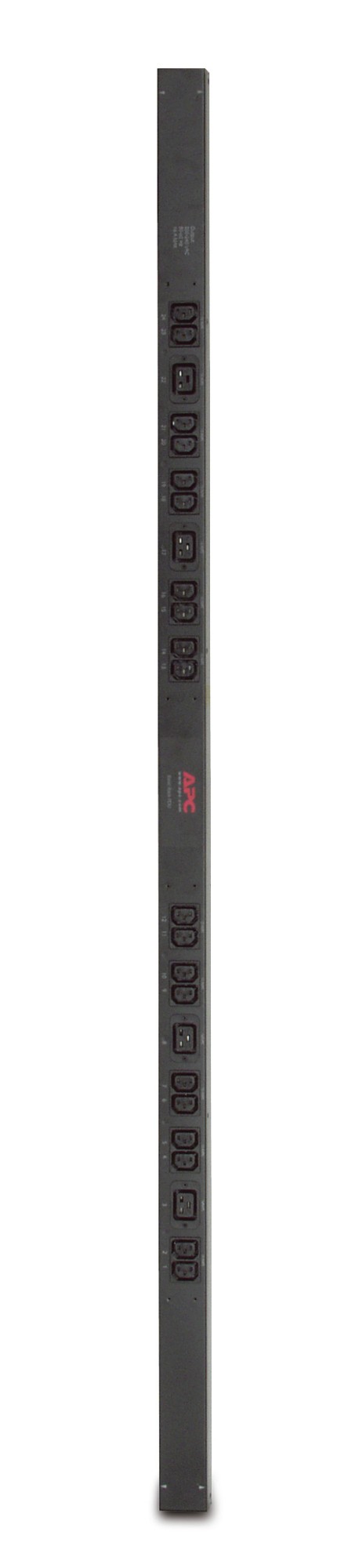

Rack PDU, Basic, ZeroU, 16A, 230V, (20)C13 & (4)C19; IEC309, 3m Cord
APC Basic Rack PDU. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A. Cable length: 3.05 m, Certification: CCC, CE, VDE. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Load capacity: 3680 VA. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.
– Single input power source.
– Toolless Mounting Capabilities.
– Vertical Mounting Capabilities.
| Weight | 3 kg |
|---|---|
| Output connections | 20x IEC 320 C13 |
| Mounting | Vertical |
| Input connection type | IEC 309 16A |
| Certification | CCC, CE, VDE |
| Maximum input current per phase | 16 A |
| Nominal input voltage | 230 V |
| Maximum total current draw per phase | 16 A |
| Cable length | 3.05 m |
| Load capacity | 3680 VA |
| Product colour | Black |
| Package weight | 6.48 kg |
| Package dimensions (WxDxH) | 152 x 127 x 2134 mm |
| Dimensions (WxDxH) | 56 x 44 x 1619 mm |
| Weight | 5.57 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Basic |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum power | 3680 W |
| Rack capacity | 0U |
