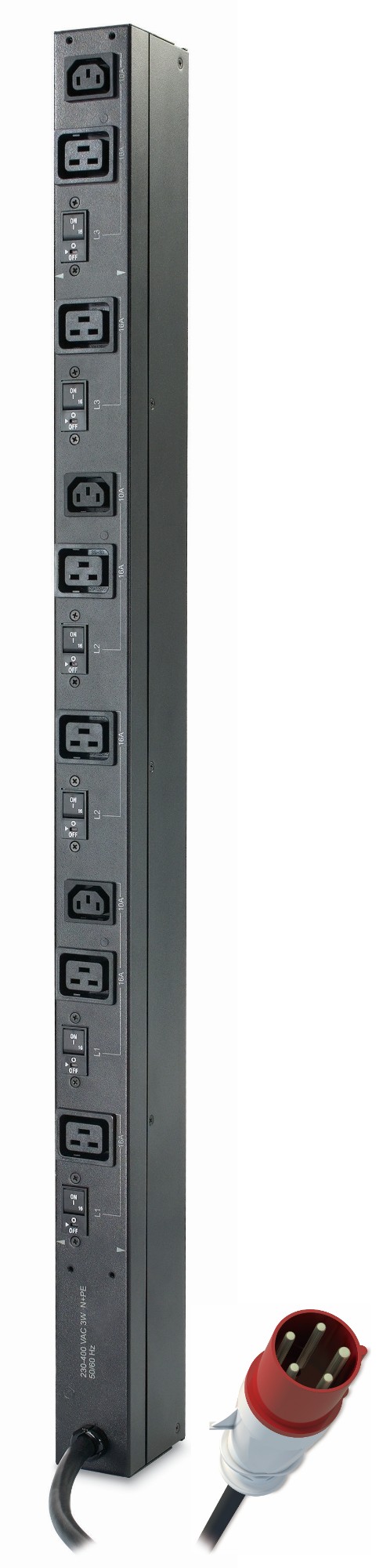

Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13
APC Rack PDU Basic Zero U. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 9 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 32A 3P+N+PE. Cable length: 1.83 m. Nominal input voltage: 400 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Dimensions (WxDxH): 55 x 88 x 927 mm, Weight: 4.75 kg
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation guide, Toolless Mounting Kit.
| Weight | 6918.6666 kg |
|---|---|
| Output connections | – (3) IEC 320 C13 |
| Mounting | Vertical |
| Input connection type | IEC 309 32A 3P+N+PE |
| Maximum input current per phase | 32 A |
| Nominal input voltage | 400 V |
| Maximum total current draw per phase | 32 A |
| Cable length | 1.83 m |
| Load capacity | 22080 VA |
| Product colour | Black |
| Package weight | 6.25 kg |
| Package dimensions (WxDxH) | 286 x 70 x 1054 mm |
| Dimensions (WxDxH) | 55 x 88 x 927 mm |
| Weight | 4.75 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Basic |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum power | 22000 W |
| Rack capacity | 0U |
| AC input frequency | 47/63 Hz |
