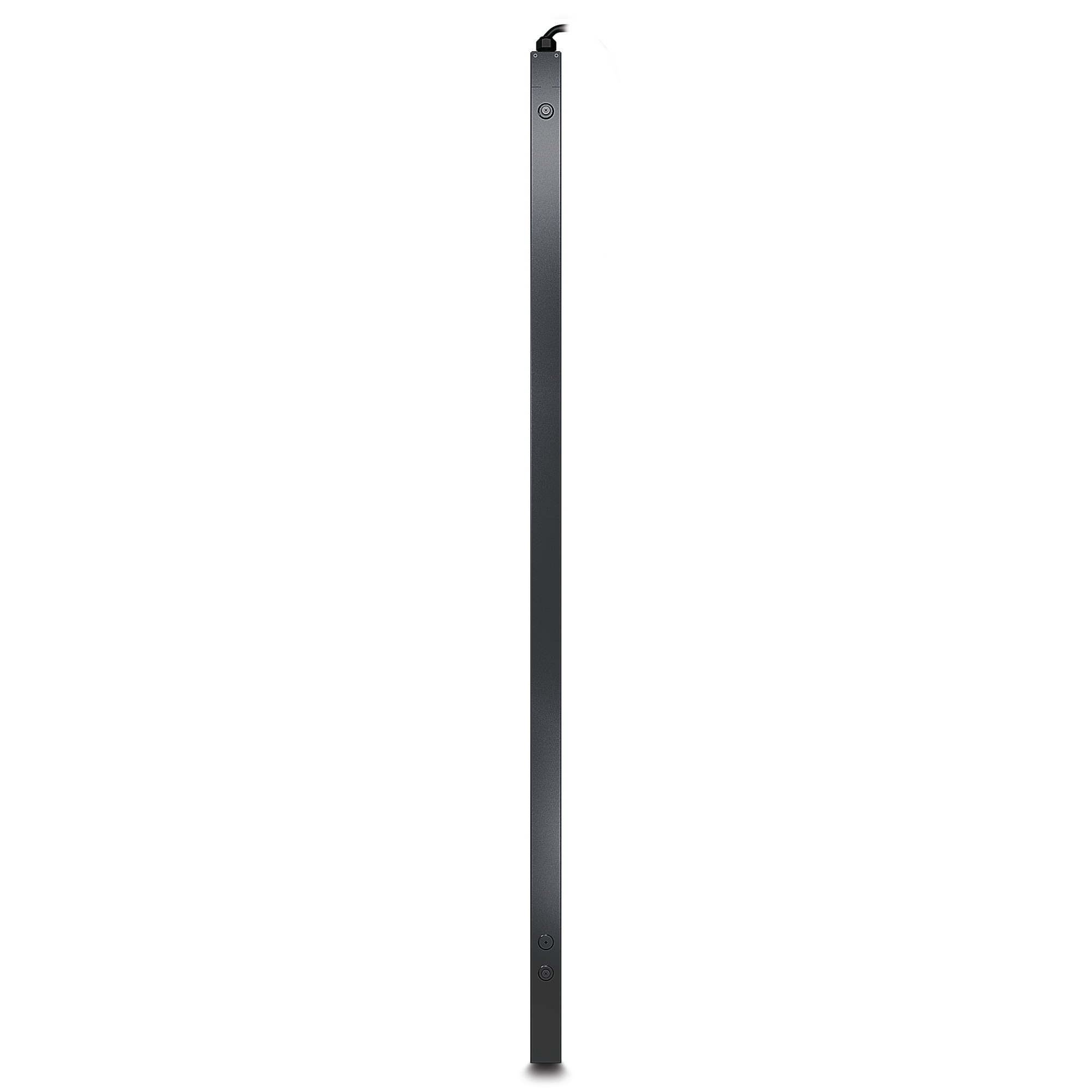

Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19
APC AP8853. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m, Certification: RoHS, REACH IEC 60950,VDE. Monitoring: Current, Power, Voltage. AC input frequency: 50 – 60 Hz, Nominal output voltage: 230 V, Load capacity: 7680 VA
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Weight | 3 kg |
|---|---|
| Output connections | 36x IEC 320 C13 |
| Mounting | Vertical |
| Input connection type | IEC 309 32A 2P+E |
| Certification | RoHS, REACH |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Cable length | 3 m |
| Load capacity | 7680 VA |
| Product colour | Black |
| Dimensions (WxDxH) | 56 x 44 x 1791 mm |
| Weight | 6.93 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | 5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Metered |
| Monitoring | Current, Power, Voltage |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum power | 7680 W |
| Type | Single-phase |
| Rack capacity | 0U |
| AC input frequency | 50 – 60 Hz |
