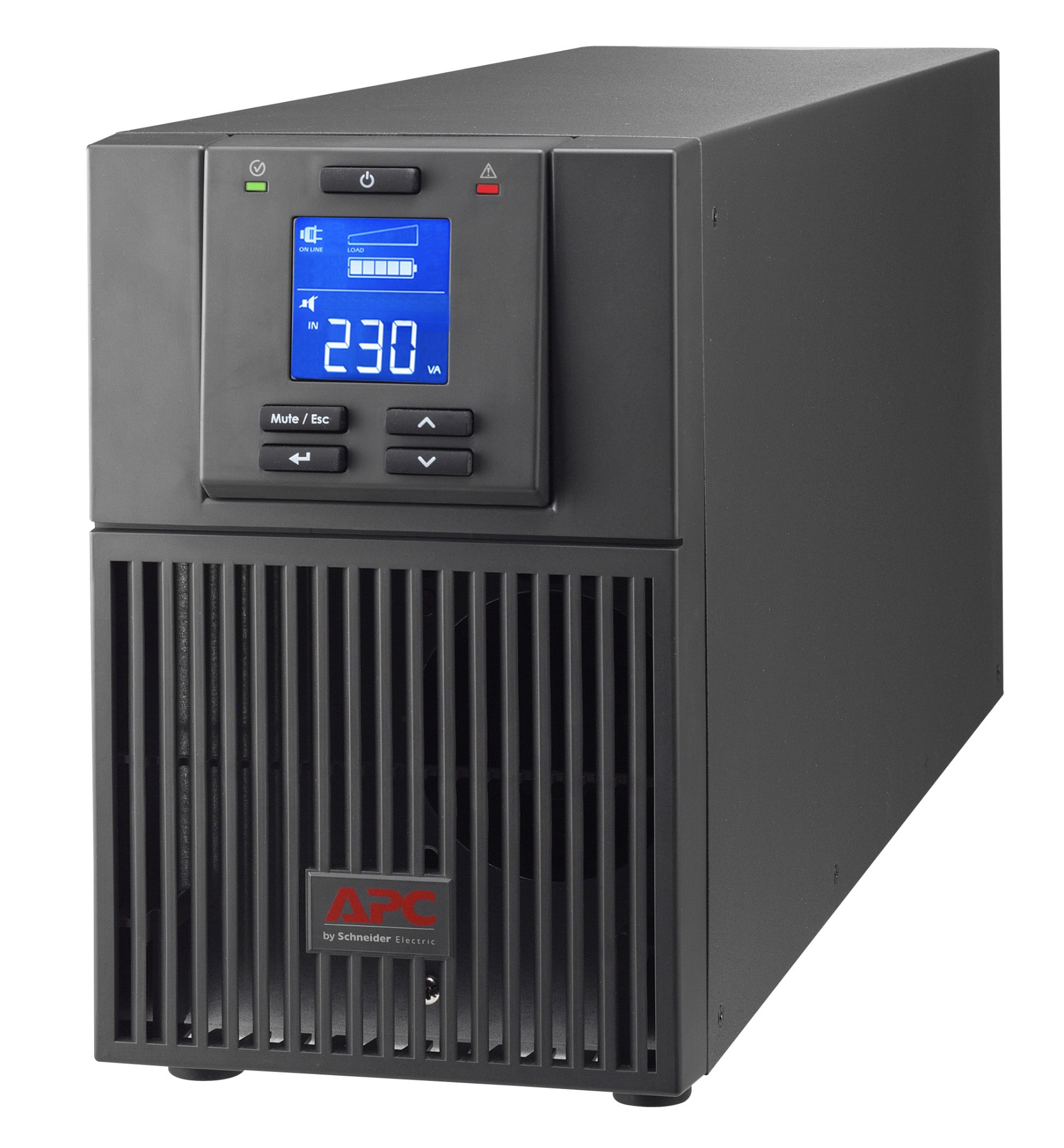

Easy UPS On-Line SRV Ext. Runtime, 1000VA, 230V, w / External Battery Pack
APC SRV1KIL. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Tower, Product colour: , Display type: LCD. Width: 145 mm, Depth: 288 mm, Height: 223 mm
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
| Form factor | Tower |
|---|---|
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Weight | 9.3 kg |
| Nominal output voltage | 230 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Nominal input voltage | 230 V |
| Surge energy rating | 600 J |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Non-operating altitude | 0 – 14763.6 m |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Depth | 288 mm |
| Height | 223 mm |
| Width | 145 mm |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler |
| Crest factor | 3:1 |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 160 V |
| Waveform | Pure sine |
| Auto-restart | Yes |
| Output frequency | 50/60 Hz |
| Cables included | USB cable |
| Manual | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| ECO mode | Yes |
| Battery width | 23.5 cm |
| Battery depth | 36.5 cm |
| Battery height | 33 cm |
| Battery weight | 10.6 kg |
| Input frequency | 40/70 Hz |
| Sustainability certificates | RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
