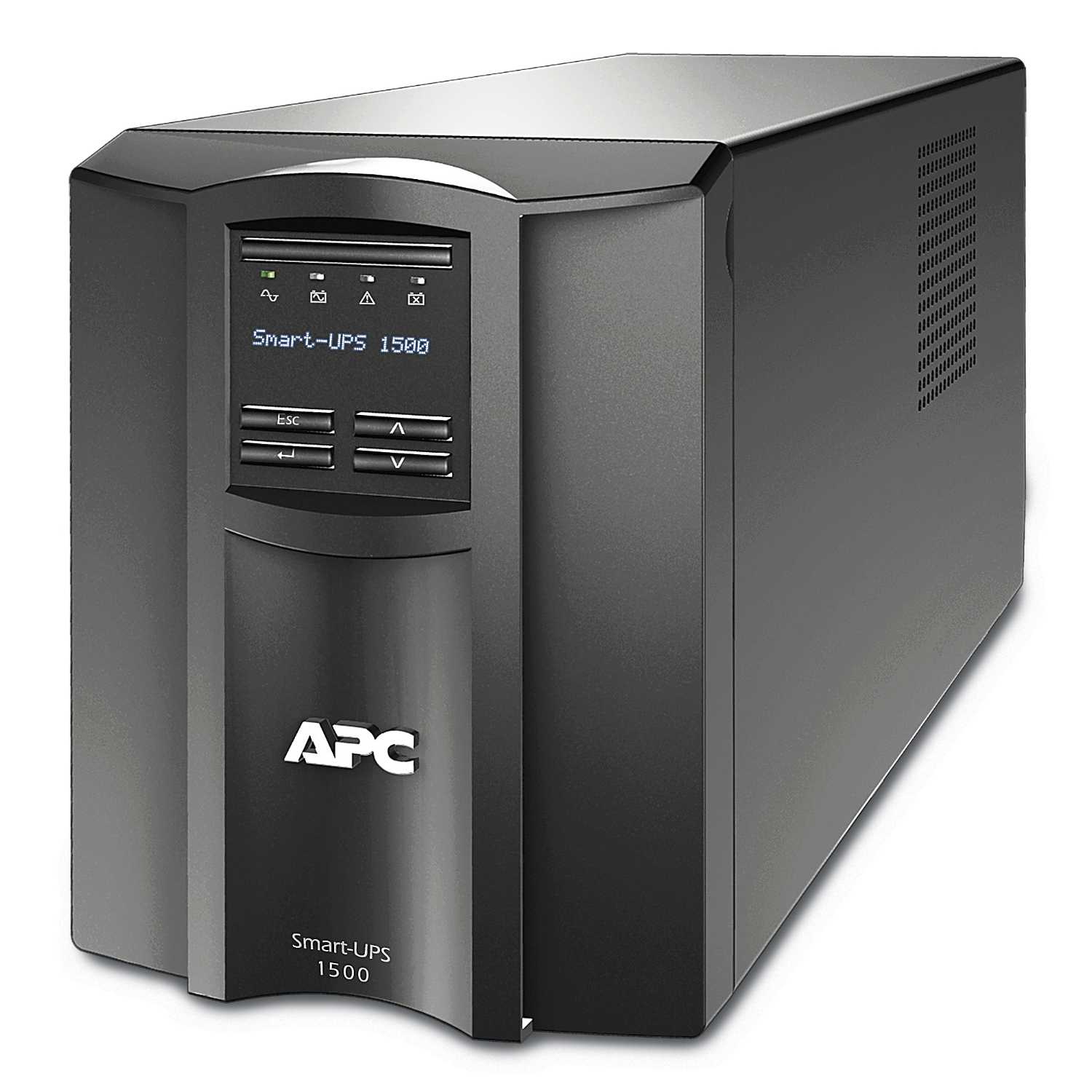

Smart-UPS 1500VA LCD 230V
APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 408 VAh, Typical backup time at full load: 6.5 min. Form factor: Tower, Product colour: , Cable length: 1.83 m. Width: 171 mm, Depth: 439 mm, Height: 219 mm
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Weight | 25966 kg |
|---|---|
| Cable length | 1.83 m |
| Typical backup time at full load | 6.5 min |
| Form factor | Tower |
| Typical backup time at half load | 23.1 min |
| Package weight | 27.2 kg |
| Weight | 24.1 kg |
| Nominal output voltage | 230 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Number of output IEC jumpers | 2 |
| Nominal input voltage | 230 V |
| Surge energy rating | 459 J |
| Hot-swap battery | No |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 45 dB |
| Products per pallet | 12 pc(s) |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| LED indicators | Status |
| Audible alarm(s) | Yes |
| Depth | 439 mm |
| Height | 219 mm |
| Width | 171 mm |
| Efficiency | 98.7% |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Package width | 328 mm |
| Package depth | 595 mm |
| Package height | 376 mm |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| USB port | Yes |
| SmartSlot | Yes |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Battery capacity | 408 VAh |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Input frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR, Green Premium, RoHS |
