2200VA, 1980W, 151-302V / 220-240V, 365J, 11 outlets, VRLA, 45dB, LCD,

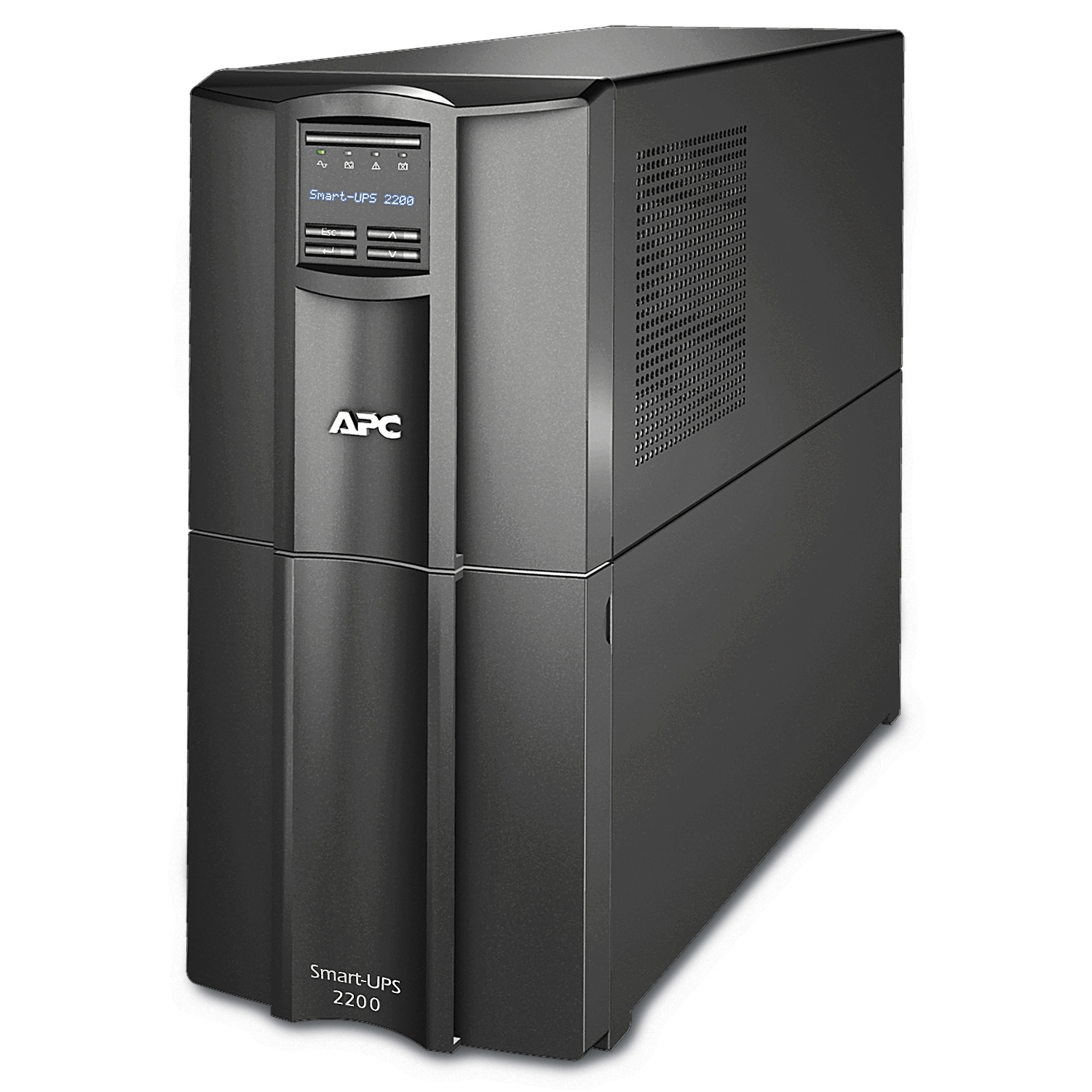

APC SMT2200I. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, IEC Jumpers, Power plug: C20 coupler, AC outlets quantity: 11 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h, Replacement battery cartridge: RBC55. Form factor: Tower, Product colour: , Display type: LCD. Width: 197 mm, Depth: 544 mm, Height: 435 mm
| Weight | 60700 kg |
|---|---|
| Form factor | Tower |
| Package weight | 61.9 kg |
| Weight | 48.8 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Number of output IEC jumpers | 2 |
| Surge energy rating | 365 J |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 45 dB |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Audible alarm(s) | Yes |
| Depth | 544 mm |
| Height | 435 mm |
| Width | 197 mm |
| Power plug | C20 coupler |
| AC outlets quantity | 11 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Output frequency regulation | 47 – 53, 57 – 63 Hz |
| Number of batteries supported | 1 |
| Package width | 381 mm |
| Package depth | 762 mm |
| Package height | 699 mm |
| Cables included | RS-232, USB cable |
| Resource CD | Yes |
| SmartSlot | Yes |
| Software CD | Yes |
| Audible alarm modes | Low battery alarm |
| Input frequency | 50/60 Hz |
| Replacement battery cartridge | RBC55 |
| Sustainability certificates | Green Premium, RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
