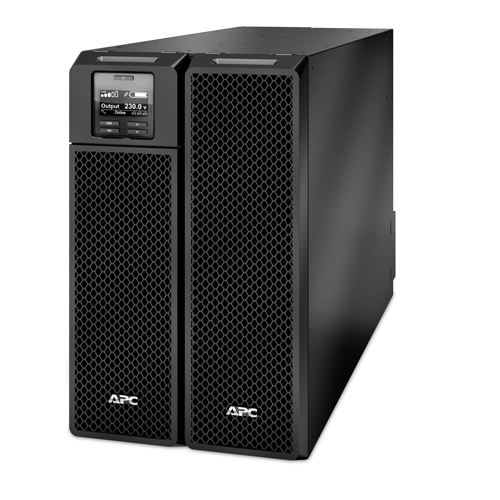

Smart-UPS SRT 8000VA 230V
APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: , Display type: LCD. Width: 263 mm, Depth: 715 mm, Height: 432 mm
APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card
| Weight | 114428 kg |
|---|---|
| Form factor | Rackmount/Tower |
| Package weight | 126.8 kg |
| Weight | 111.8 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Number of output IEC jumpers | 3 |
| Surge energy rating | 480 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 55 dB |
| Products per pallet | 1 pc(s) |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| LED indicators | Status |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Depth | 715 mm |
| Height | 432 mm |
| Width | 263 mm |
| Surge protection | Yes |
| Power plug | Terminal |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Crest factor | 3:1 |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 476 V |
| Input operation voltage (min) | 100 V |
| Number of output phases | 1 |
| Waveform | Sine |
| Auto-restart | Yes |
| Output frequency regulation | 50/60 Hz |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| International Protection (IP) code | IP20 |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Temperature sensor | Yes |
| Warranty card | Yes |
| Packaging content | Web/SNMP Management Card |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Battery capacity | 1728 VAh |
| Input frequency | 40 – 70 Hz |
| Sustainability certificates | RoHS, ENERGY STAR |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
