10 kVA, 10 kW, 100-285V, 40/70Hz, LCD, IP20
APC SRTG10KXLI. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Display type: LCD, International Protection (IP) code: IP20. Width: 440 mm, Depth: 620 mm, Height: 217 mm

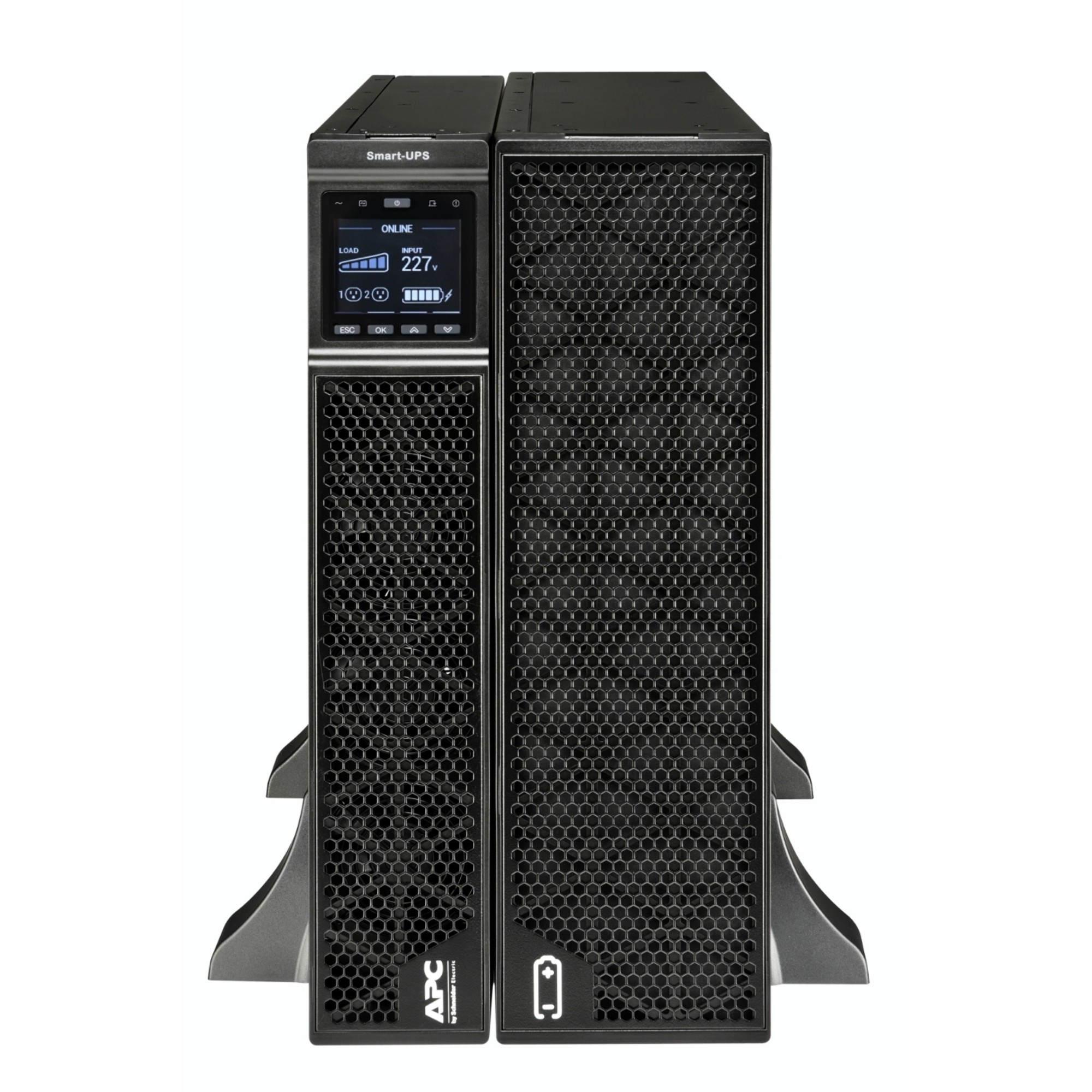

APC Smart-UPS RT 10kVA 230V
– High density, double-conversion on-line power protection with scalable runtime
– Includes: Smart UPS signalling RS-232 cable, User manual
| Form factor | Rackmount/Tower |
|---|---|
| pa_i_ethernetlanrj4_2312_1 | 1 |
| Package weight | 83.1 kg |
| Weight | 81.1 kg |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Surge energy rating | 600 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 2011.68 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15240 m |
| Noise level | 55 dB |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Depth | 620 mm |
| Height | 217 mm |
| Width | 440 mm |
| Power plug | Hardwire |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Crest factor | 3:1 |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 285 V |
| Input operation voltage (min) | 100 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Battery voltage | 96 V |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| International Protection (IP) code | IP20 |
| Output frequency | 50/60 Hz |
| Emergency Power Off (EPO) connector | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Battery life (max) | 5 year(s) |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Display type | LCD |
