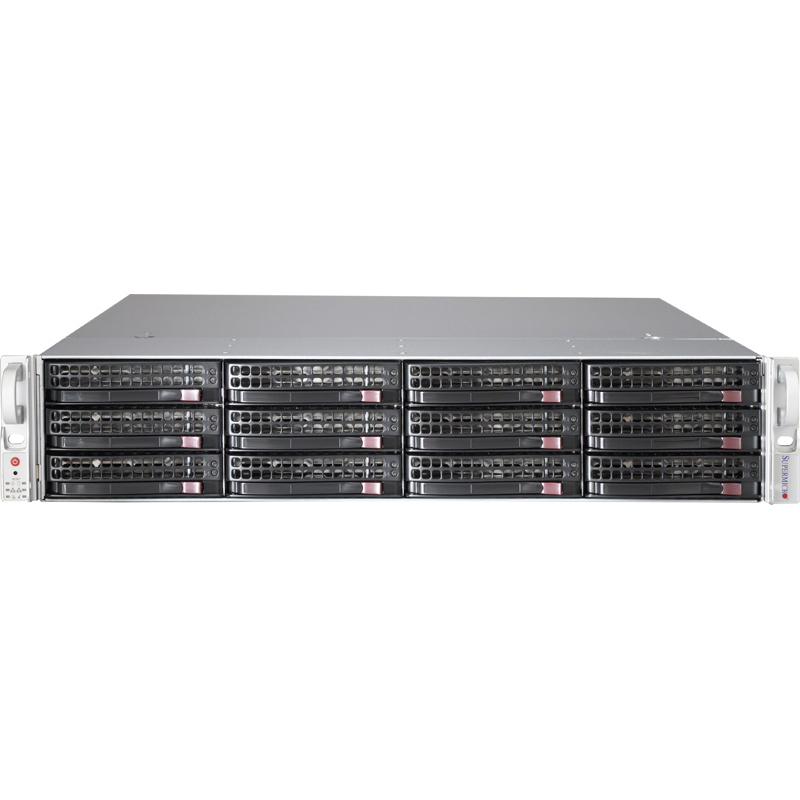

2U, E-ATX, 12x 3.5″ Hot-swap, 920W, 23.6 kg
Supermicro SuperChassis 826BE1C-R920LPB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 920 W. Supported HDD sizes: 3.5″. Width: 437 mm, Depth: 648 mm, Height: 89 mm
1. 12x 3.5″ Hot-swap SAS3/SATA Drive Bays
2. Optional 2x 2.5″ Hot-swap SATA3 Drive Bays for OS mirroring
3. SAS3 Single Expander backplane with SES-2 and cascading support
4. Mini-SAS HD 12Gbps connectivity (2 port in & 2 port out)
5. 3x 80mm Hot-swap Cooling Fans
6. 920W Redundant Power Supplies Platinum Level (94%+)
7. 7x Low-profile PCI expansion support
| Form factor | Rack |
|---|---|
| Depth | 648 mm |
| Height | 89 mm |
| Weight | 23.6 kg |
| Width | 437 mm |
| Power supply | 920 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 60 °C |
| Supported HDD sizes | 3.5" |
| Side window | No |
| Number of expansion slots | 7 |
| Hot-swap | Yes |
| Harmonized System (HS) code | 84733080 |
