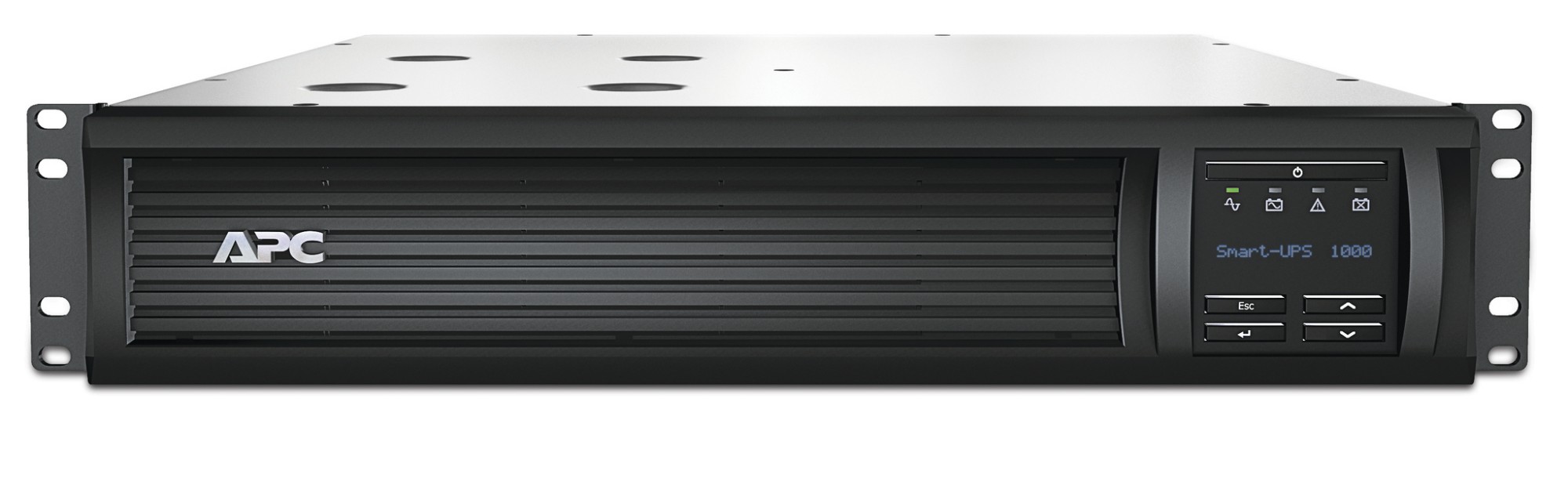

Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
APC SMT1000RMI2UC. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: , Rack capacity: 2U. Width: 432 mm, Depth: 477 mm, Height: 86 mm
| Weight | 3 kg |
|---|---|
| Form factor | Rackmount |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| Package weight | 31.4 kg |
| Weight | 28.2 kg |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 459 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 45 dB |
| Products per pallet | 8 pc(s) |
| Certification | EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
| LED indicators | Yes |
| Response time | 10 ms |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Depth | 477 mm |
| Height | 86 mm |
| Width | 432 mm |
| Surge protection | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of batteries supported | 1 |
| Package width | 594 mm |
| Package depth | 603 mm |
| Package height | 251 mm |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Software CD | Yes |
| Battery life (max) | 6 year(s) |
| Rack capacity | 2U |
| Temperature voltage compensation | Yes |
| USB port type | USB Type-A |
| Input frequency | 50/60 Hz |
| Replacement battery cartridge | APCRBC132 |
| Sustainability certificates | Green Premium, RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
